What is “EAZET”

For over 40 years, we have been developing a variety of products and systems based on customers' prospective.
For housing and commercial building, railway facility, road and bridge, electricity facility, plant site building and facility, and water supply facility.

High performance

Bearing capacity

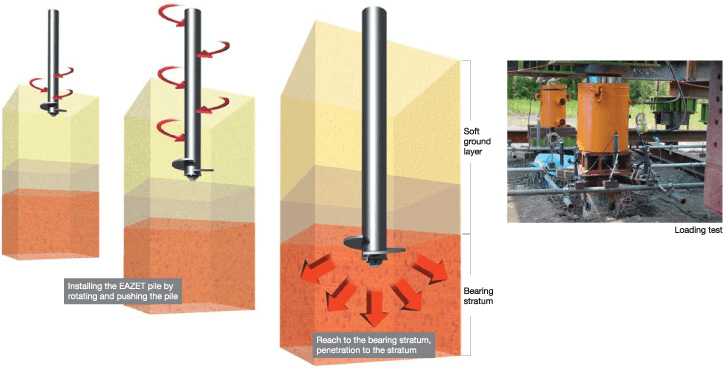

The helix at the bottom of the pile provides larger bearing capacity comparing to normal straight piles. EAZET pile is designed for optimal installation and secure demonstrating bearing capacity.

steel pipe pile, screw pile, Bearing capacity

Representative specification and bearing capacity with N value

steel pipe pile, screw pile, Bearing capacity

Uplift resistance

Extended helical tip also effects as an anchor.

steel pipe pile, screw pile, Uplift resistance
steel pipe pile, screw pile, Uplift resistance

Pile Joint

steel pipe pile, screw pile, mechanical joint, connection

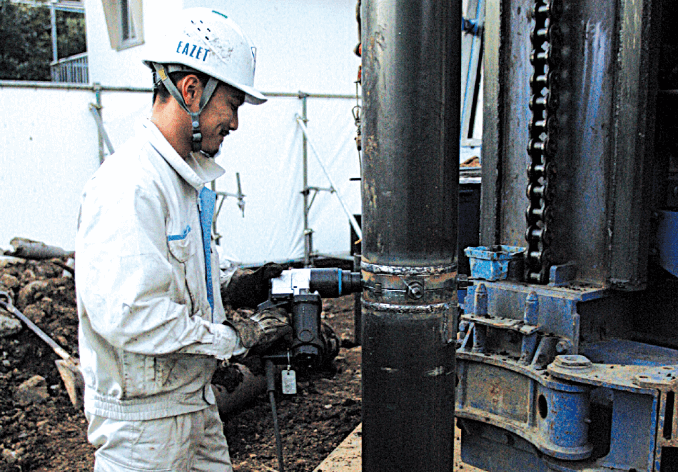

We have mechanical joint system, AKJ. This can connect the piles without welding so that there are no concern about the weather nor skills of the welding engineers.

steel pipe pile, screw pile, mechanical joint, connection

Working with type of CCJ

Type of AKJ

AKJ
